LUTH-AR  MBA-3  CARBINE  BUTTSTOCK – BLACK

£175.00

Category:

Description

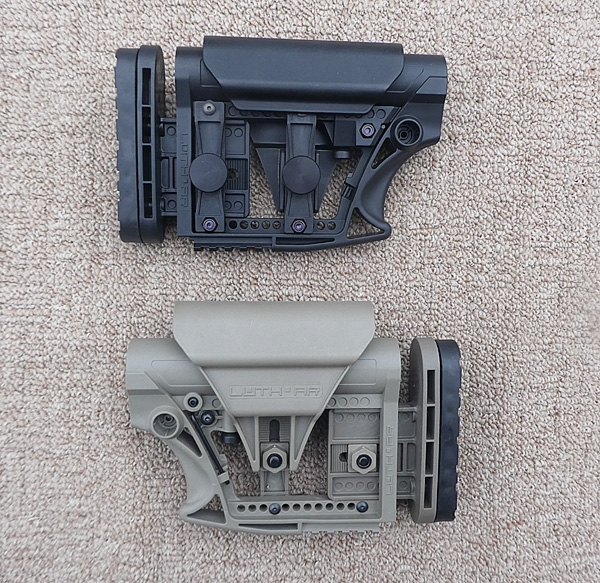

MBA-3(Modular Buttstock Assembly) for AR rifles.  NB! this item is in Black. The Flat Dark Earth version is listed separately!

  • Ergonomic design
  • Adapts to existing commercial and mil-spec buffer tubes
  • Certain aftermarket commercial buffer tubes that exceed  1.172″ diameter may not fit
  • The MBA-3 and MBA-4 are available in Black or Flat Dark Earth (please see separate  entries on this site)
  • The vertical struts for the MBA-3 are fixed, therefore the cheek piece is not reversible like the MBA-1 however the cheek piece itself is designed with a cheek pad for left-handed use
  • Caution: the MBA-3 and MBA-4 carbine buttstocks are not designed to be used with large bore calibres such as .338 Lapua or .50 BMG applications. See our MBA-1 rifle buttstock as an alternative
  • The MBA-3 carbine buttstock is NOT interchangeable with A2 standard buffer tube. You will need to purchase a specific carbine buffer tube. If you don’t already have one they are available elsewhere on this site
  • Fully adjustable carbine buttstock assembly to mount to a carbine rifle (6-positions mil-spec or commercial tube)
  • The MBA-3 carbine buttstock requires a carbine buffer tube, either mil-spec or commercial. This stock works with both carbine commercial and mil-spec tubes/assemblies.
  • Additional 1″ height on cheek rest
  • 3-axis adjustable butt plate assembly extends additional 1 1/16″ length of pull and includes the following movement:
    1. Horizontal for linear adjustment (i.e. length of pull)
    2. Vertical for a perfect butt plate fit into the curvature of the shoulder.
    3. Lateral adjustment for a ½ inch left or right cast
    4. This butt plate assembly is interchangeable with the original MBA-1 buttstock
  • Includes picatinny rail on the bottom rear of the stock body to attach your choice of many accessories.
  • Features a flat bottom index set screw (10-24) to eliminate that constant rattle of carbine collapsible buttstocks. This also allows you to secure the stock in your favourite position.
  • The MBA-3 comes with a  medium soft rubber recoil pad, Duro 85.
  • The Luth-AR MBA-3 weighs roughly half that of comparable stocks coming in at just 18.5 ounces.
  • Fits all .223 and .308 AR carbine style rifles
  • Super strong glass filled nylon
  • Easy to replace and quick to install
  • Uses 4 out of the 6 positions on a mil-spec or commercial tube
  • If you require a butt stock that will utilize the first 2 holes of the buffer tube to fully collapse, you can remove the cheek rest from the MBA-3
